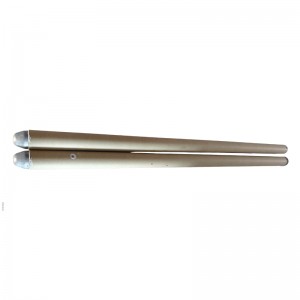

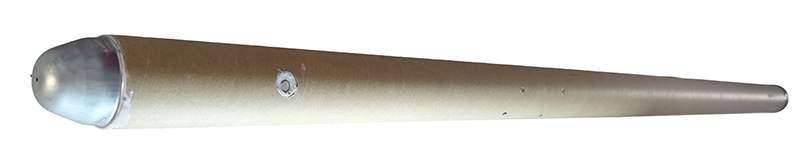

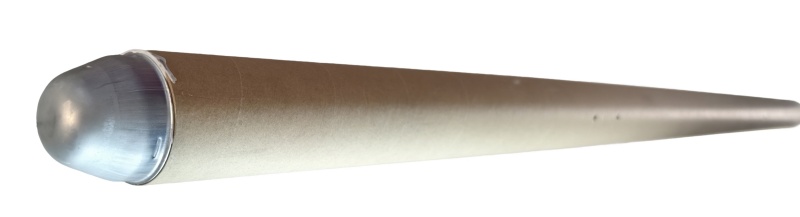

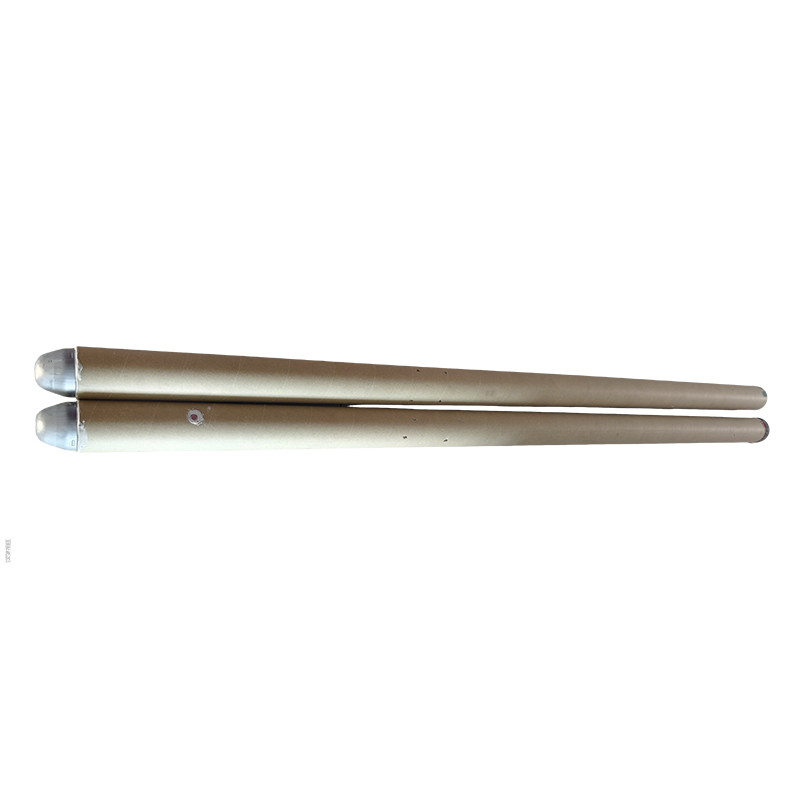

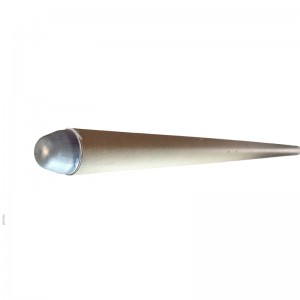

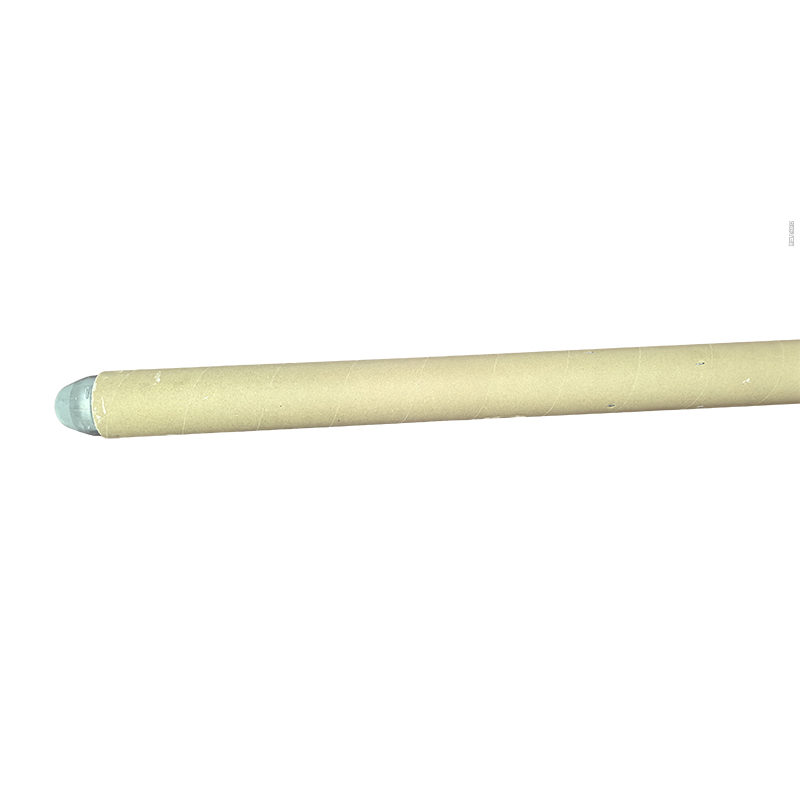

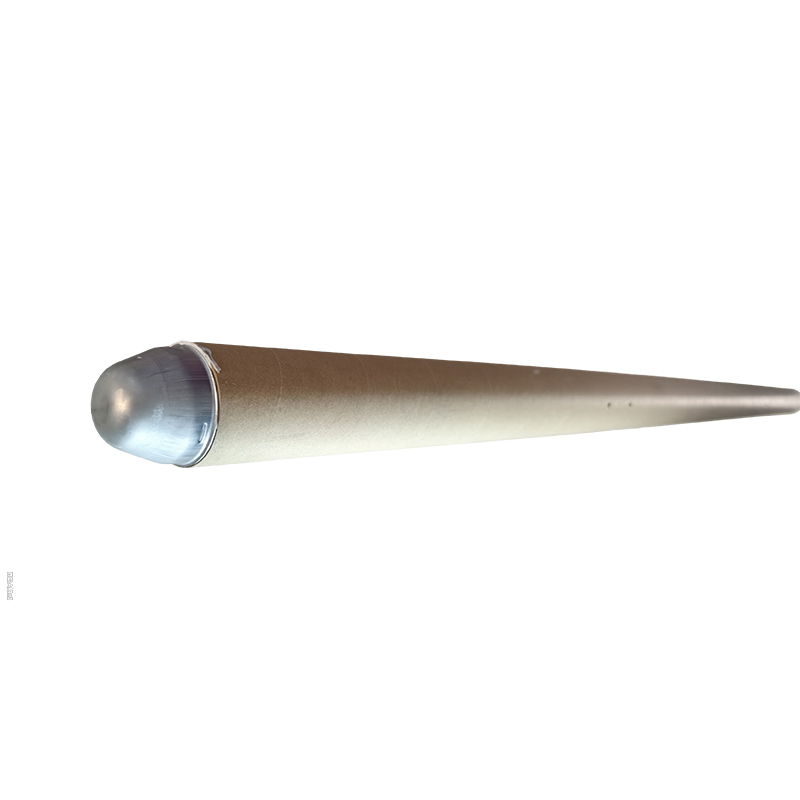

Sublance probe

Short Description:

The sublance probe is a special type of composite probe in converter operation. It supports multiple measurement functions, including temperature, carbon content, oxygen content, and steel sample collection, all in a single operation. This multi-functionality eliminates the need for separate tools, streamlining the process. It has the advantages of speed, accuracy, stability, and self-control. By using this probe, static and dynamic control of large-scale converter smelting can be achieved, which plays an important role in improving the quality of molten steel, shortening smelting time, and reducing steel-making costs.

Send email to us Download as PDF

Product Detail

Product Tags

Model

TSO sublance probe is a special type of composite probe for the auxiliary gun of the converter, with three functions including the bath temperature (T), the sampling (S) and the oxygen oxygen activity (O) .

Model	Steel Sample Shape	Measuring Range	Accuracy	Response Time	Measurement Rate
TSO-2000(s)	Round sample/Double thickness sample	Carbon content 0.02-0.16%	Average carbon determination deviation: ≤0.015%	Oxygen<8sTemperature<6s	Oxygen measurement>98% Temperature measurement>98% Sampling>96%

TSC Sublance Probe is a special type of composite probe for the auxiliary gun of the converter, with three functions including the bath temperature (T), the sampling (S) and the carbon content (C).

Model	Steel Sample Shape	Measuring Range	Accuracy	Response Time	Measurement Rate
TSC-2000(s)	Round sample/Double-thickness sample	Carbon content 0.15-0.8%	C≤0.2%, the deviation is ±0.02%;0.2%≤ C ≤0.50%, the deviation is ±0.04%;C ≥0.5%, the deviation is ±0.06%	Temperature ≤8sCarbon ≤8s	Temperature measurement ≥98% Carbon determination ≥97% Sampling ≥95%
